Solusi Cerdas Pemantauan Level Tekanan 24/7
APLR adalah alat pemantau otomatis yang digunakan untuk merekam dan mengirimkan data tekanan fluida seperti air tanah atau gas secara real-time. Menggunakan sensor tekanan presisi tinggi, mengirimkannya melalui sistem telemetri (GSM, radio, atau satelit) ke pusat pemantauan. Dengan APLR, level tekanan dipantau otomatis setiap saat tanpa harus ke lapangan.
-
Brosur tidak tersedia
Solusi tepat pemasangan di wilayah:

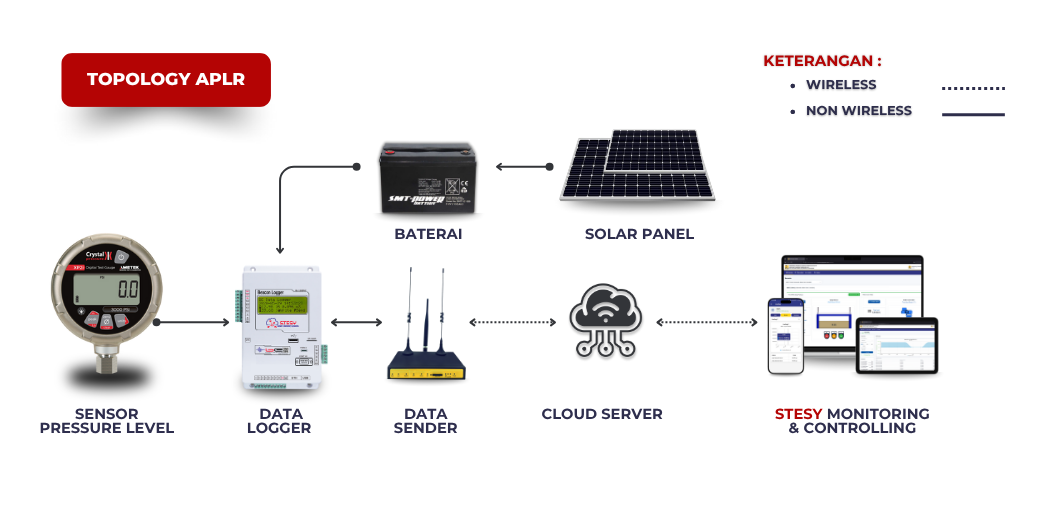

Bagaimana topologi perangkat PLR seri BE PLR-1000?
.png)
BL Logger 1100
| Connectivity & Communication | |
|---|---|
| Internet Connection |
4G Wireless Router, LAN ports, Wi-Fi transmission channel |
| Communication Ports |
2x Serial Data RS232, 1x Modbus RS485, 1x USB Port, 1x Ethernet Port (TCP/IP), 1x DB9 Serial Port, 1x Type-C Port, Dual Mode Bluetooth (Classic and BLE) |
| Data Download |
Supports local Wi-Fi connection |
| Positioning System |
Integrated GPS Module for location tracking |
| Processing & Memory | |
| Processor |
SRAM 192 KB |
| Processor |
STM32F407xx (Arm Cortex 32-bit) |
| Clock Speed |
Up to 168 MHz |
| Input & Ouput | |
| Analog Input |
8 Channels |
| Digital I/O |
4 |
| ADC Resolution |
16-bit |
| Support Multisensor |
Yes |
| Power Supply & Regulation | |
| Operating Input Voltage |
10 - 24 VDC |
| Built-in DC Regulator Output |
5VDC, 12VDC, and 24VDC (for various sensor power supply) |
| Environmental & Durability | |
| Operating Temperature |
-40 to +85°C |
| Enclosure Material |
Flame-resistant ABS |
| Dimension |
125 x 44 x 205.6 mm |
| Display & Data Handling | |
| Display |
20 x 4 character LCD with green LED backlight |
| Data Format |
Excel (CSV File) |
